US&S M3/M23 SMQ
Rail Development Group
>
US&S M3/M23 SMQ
General Information
Customer
*
PO#
*
RDG#
*
Contact Person
*
First
Last
Phone
*
Email
*
Order Type (please select one)
*
Remanufacture Customer Owned Machine
Remanufactured Machine from RDG Stock
To purchase from RDG Stock please click here to view all
RDG Remanufactured Machines
Credit/Exchange
*
Will you be providing a machine or other material in exchange or for credit?
No
Yes
If yes, please list the type of equipment.
Would you like to fill out your US&S M3/M23 SMQ Information?
*
Yes
No, please contact me for specifications
US&S M3/M23 SMQ Information
Type of Machine
*
M23-A
M23-B
M3
Mounting Base
*
Milled 1" holes - 18.25" Wide
Not Milled 7/8" holes - 18.5" Wide
Machine Voltage
*
20 Volt
110 Volt
Gear Ratio 110 Volt
*
189:1 ~ 5 sec Throw Time
360:1 ~ 15 sec Throw Time
Gear Ratio 20 Volt
*
360:1 ~ 15 sec Throw Time
528:1 ~ 26 sec Throw Time
Control Type
*
3 Wire
5 Wire
Special (Include Wire Diagram)
Upload Wire Diagram
Max. file size: 2 MB.
Configuration
*
Left Hand
Right Hand
Heater Voltage
*
24 Volt (15 W)
110 Volt (15 W)
110 Volt (30 W)
No Heaters

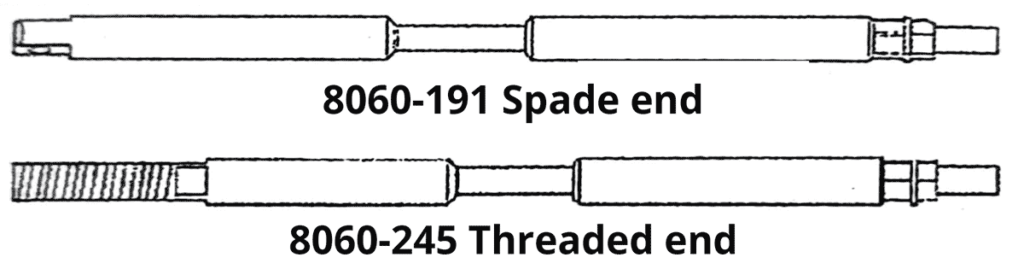

PD Rod Type
Space End
Threaded End
None

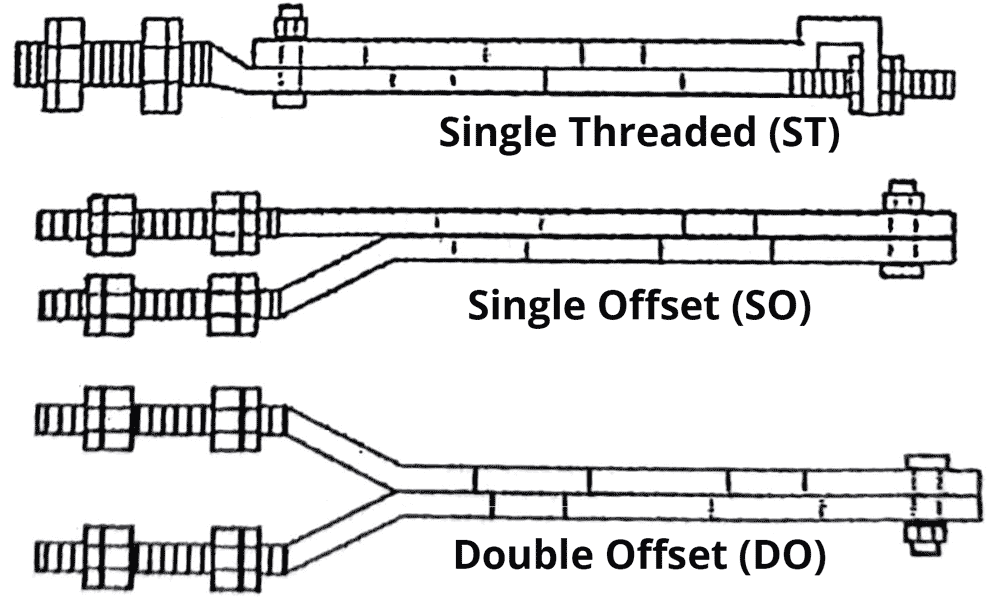

Lock Rod Type
*
Single Threaded (ST)
Single Offset (SO)
Double Offset (DO)
None
Configure Lock Box only for
*
Please choose one if you answered Lock Rod Type None.
Single Threaded (ST)
Single Offset (SO)
Double Offset (DO)
Indication
*
LH Switch Machine Near Point Normal
RH Switch Machine Near Point Normal
LH Switch Machine set up for Far Point Normal
RH Switch Machine set up for Far Point Normal
Motor
*
Permanent Magnet Motor (Blue)
Series Wound Moror (Black)
Paint Options
*
Black
Silver
Special/ Notes
Submit Your Information
When you have finished filling out as much information as you would like to share about your project please click submit.
